Table frame

A-93AB
Table frame

A-93AB

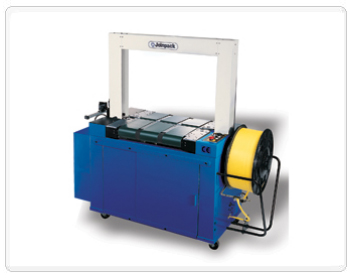

Making the strapping job easier, you are viewing low-cost automation packaging machine to widely increase your productivity, with its extraordinary competitive advantages. Accommodating to wide range of product sizes, effectively making the strapping securing process faster maximizes your production speed. Used for polypropylene straps in broad range of straps width, this belt drive automatic strapping system can be applied for general industry usage with belt conveyor table top advantage, which can be integrated with your in-feed existed conveyor and out-feed conveyor.

This high quality table top automatic power roller drive strapping machine contains bottom heat sealed elements for maximum seal efficiency. (Minimum packaging size: W 200 x L 250 mm) With several valuable optional functions including auto load in-feed and retracting system, loop ejector and short feeding detection device, extra options features add up its strapping performance and its user-friendly characteristics. The top press unit extends more your strapping performance which can be made as request. The most reliable and secure in-line fully-auto belt table top strapping equipment, a phenomenal and outstanding packaging solution for your operation.



Technical specifications:



Power supply 110/220/230/240 V, 50/60 Hz, 1PH
Power supply 220/230/380/415/440 V, 50/60 Hz, 3PH
Power Consumption 1 kW
Cycle time 2.5 sec/strap
Tension range 15~70 kg
Strap width 9, 12, 15.5 mm
Sealing method Heating element
Reel inside diameter 200, 230, 280 mm
Conveyor speed 18m/min. (50Hz), 21m/min. (60Hz)
Table height 805 mm
Arch size 850 W x 600 H (mm)
Layout dimensions 1445 L x 630 W x 1525 H (mm)
Machine weight 260 kg







 A-93 AB
