Table frame

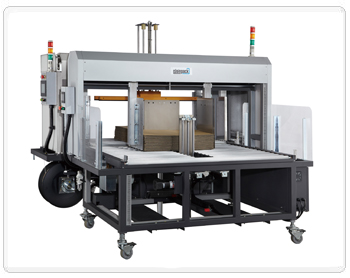

Matrix 88 C + CS4
Table frame

Matrix 88 C + CS4



High performance fully-automatic bundle integrates with 4 sides squaring machine designed for corrugated industry. CS4 squaring ensures that the bundle is fine aligned and straightened before strapping. It is easy to change the bundle size. Suitable for 5,6,9 mm straps.



Technical specifications:



Power supply 110/230 V, 50/60 Hz, 1 PH
Power consumption 2.75 kW
Cycle time 1.8 sec/strap
Table height 760~1010 mm
Layout dimensions 2342 L x 2129 W x 2049~2770 H (mm)
Machine weight 1100 kg
