Table frame

Table frame

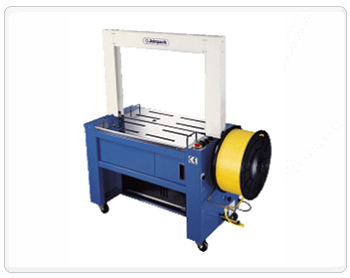

Used for both polypropylene straps and also polyester straps in broad range of straps width, the automatic strapping can be applied for general industry usage. Capacity for 24 straps, this standard table top automatic strapping machine contains bottom heat sealed elements for maximum seal efficiency. With several valuable optional functions including auto load in feed and retracting system, loop ejector and short feeding detection device, the extra options features add up its strapping performance and its user-friendly characteristics. The most reliable and secure strapping equipment, operator can use it as an easy and quick packing equipment for your daily operation.


Technical specifications:


Power supply 110, 220, 230, 240 V, 50/60 Hz, 1 PH
Power consumption 0.72 kW
Cycle time 2.5sec / strap
Tension range 15~75 kgs
Strap width 9, 12, 15.5 mm
Sealing method Heating method
Table height 800 mm
Reel inside diameter 200, 230, 280 mm
Arch size 850 W x 600 H (mm)
Layout dimensions 1440 L x 600 W x 1520 H mm
Machine weight 228 kgs
