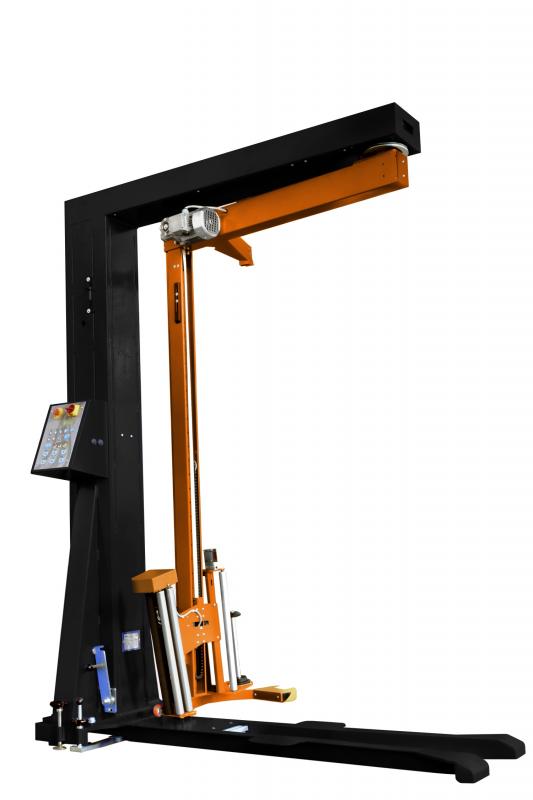

SL-Automatic high speed
Reliable and the most efficient machine that is capable of doing up to 110 loads per hour. Two to four mil poly film, 2030 mm wide is automatically applied over the top of load for moisture and dust protection. In-line top sheet dispenser model applies and secures sheet of film over load as it indexes into the wrap zone with no interruption to the wrapping cycle. Mid-wrap top sheet dispenser applies and secures sheet of film over top of load during the wrapping cycle. Load is protected with five-sided coverage.
Conveyor sections
Available in 1500 mm sections and 3000 mm and 3600 mm wrap zone sections. Close-spaced and tight-spaced conveyor rollers. Standard and non-standard pass heights. Includes safety fencing and additional safety photocells mounted on the safety shield.
Technical specifications:
|
Performance |
|
|
|
|
|
Peak production speed |
Up to 110 loads per hour (variable speed packages) |
|
Maximum load dimensions |
1473 L, 1473 W, 2032 H (mm) |
|
Minimum load dimensions |
914 L, 914 W, 610 H (mm) |
|
Maximum load weight |
Conveyor capacity |
|
|
|
|
Load Handling |
|
|
|
|
|
Wrap arm speed (variable) |
Up to 40 RPM (variable speed packages) |
|
Wrap arm drive |
VFD Motor control |
|
|
|
|
Performance features |
|
|
|
|
|
Pallet grip |
Standard |
|
Film capacity |
254 Diameter, 508 Width (mm) |
|
Film delivery system |
Metered film delivery (system with EZ thread) |
|
Automation unit - Film clamp |
Load seeking clamp 4.0 |
|
Load guardian |
Standard |
|
|
|
|
Weight and size |
|
|
|
|
|
Approximate weight (without conveyor) |
3945 kg |
|
|
|
|
Electrical and service |
|
|
|
|
Electrical service - EU |
3L-PE-400V-50 Hz-Neutral |
|
Electrical service - US |
480V- 3-ph, 60 Hz, Wye w/Ground |
|
Enclosure |
NEMA 12, UL |
|
Control |
PLC with HMI |
|
Pneumatic |
6 Bar, 80 Psi |
