SL-Automatic
SL Automatic is a reliable stretch wrapping straddle. Two to four mil poly film, 2030 mm wide is automatically applied over the top of load for moisture and dust protection. In-line top sheet dispenser model applies and secures sheet of film over load as it indexes into the wrap zone with no interruption to the wrapping cycle. Mid-wrap top sheet dispenser applies and secures sheet of film over top of load during the wrapping cycle. Load is protected with five-sided coverage.
Conveyor sections
Available in 1500 mm sections and 3000 mm and 3600 mm wrap zone sections. Close-spaced and tight-spaced conveyor rollers. Standard and non-standard pass heights. Includes safety fencing and additional safety photocells mounted on the safety shield.
Technical specifications:
|
Performance |
|
|
|
|
|
Peak production speed |
45-50 loads per hour |
|
Maximum load dimensions |
1473 L, 1473 W, 1905 H (mm) |
|
Minimum load dimensions |
914 L, 914 W, 610 H (mm) |
|
Maximum load weight |
Conveyor capacity |
|
|
|
|
Load Handling |
|
|
|
|
|
Wrap arm speed (variable) |
1-15 RPM |
|
Wrap arm drive |
VFD Motor control |
|
|
|
|
Performance features |
|
|
|
|
|
Pallet grip |
Standard |
|
Film capacity |
254 Diameter, 508 Width (mm) |
|
Film delivery system |
Metered film delivery |
|
Automation unit - Film clamp |
Load seeking clamp 4.0 |
|
Load guardian |
Standard |
|
|
|
|
Weight and size |
|
|
|
|
|
Approximate weight (without conveyor) |
3946 kg |
|
|
|
|
Electrical and service |
|
|
|
|
Electrical service - EU |
3L-PE-400V-50 Hz-Neutral |
|
Electrical service - US |
480V, 3-ph, 60 Hz, Wye w/Ground |
|
Enclosure |
NEMA 12, UL |
|

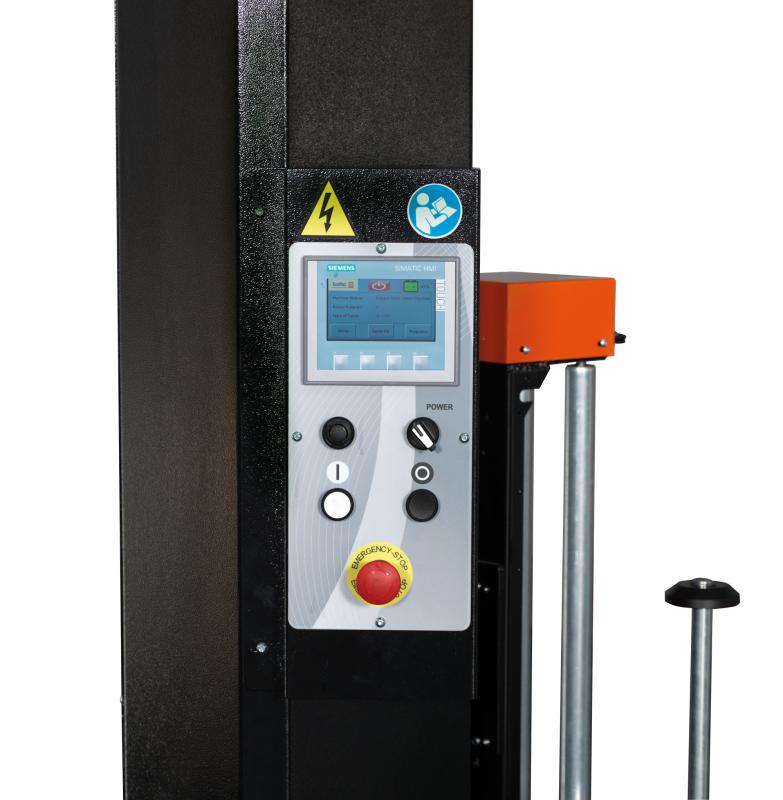

Control |
PLC with HMI |
|
Pneumatic |
6 Bar, 80 Psi |
