Vertical wrappers

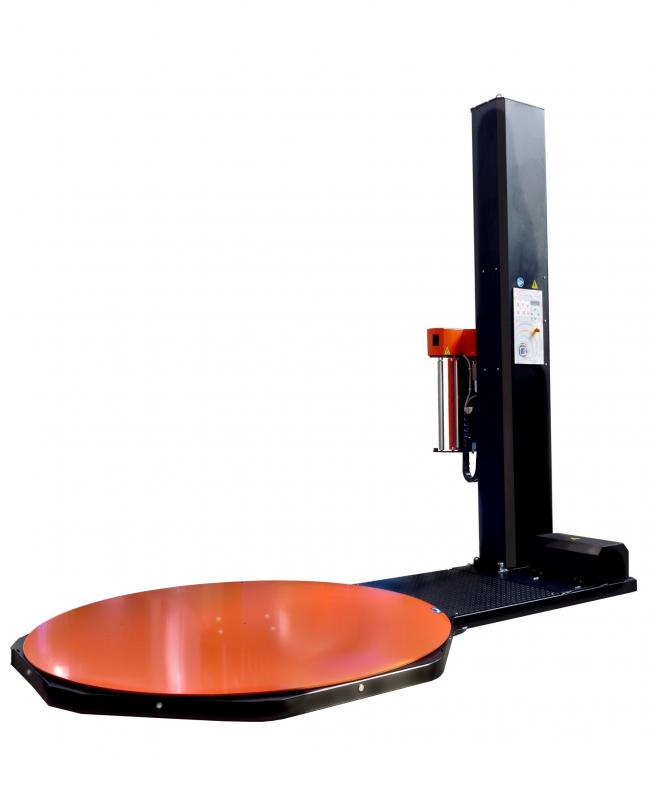

S-300XT
Stretch Wrapping Straddle

S-300XT



Extended wrap height increases the wrap heights of your loads. Replace the 203 cm (80") mast with a 279 cm (110") mast. The machine is adaptable and can operate in temperatures below -1 C to -18 C (+32 F to 0 F). Operation in corrosive environment, it is for machines with exposure to agents such as salt and fertilizer. The machine allows the wrap arm to rotate up to 15 RPM. Note: This option includes Power-Roller Stretch Plus and increases the pre-stretch to 250%. Pallet grip makes a "cable" of film that locks the load to the pallet. The film cable decreases the risk of damage during shipment. Start or stop the machine from the forklift or other location. Note: You can use the remote for multiple machines.



Technical specifications:


Performance

Peak production speed Up to 30-40 loads/hr
Load size diagonal (recommended) 1930 mm (76")
Maximum load wrap height 2030 mm (80")
Maximum load weight Floor capacity

Load Handling

Wrap Arm speed (variable) 12 RPM
Wrap Arm zone 2280 mm (90")
Wrap Arm drive 3/4 HP TEFC

Performance features

XT cut and clamp Standard
Auto film cut-off Not applicable
Pallet grip Standard
Intelli-sensor Standard
Standard film width 500 mm (20")
EZ Thread film delivery Standard
Standard Pre - Stretch 200%
Wrap force Variable (electric)
Film capacity 250 diameter - 500 L (mm)
Film delivery system Power-Roller Stretch
NEMA 12 Enclosure Standard

Weight and size

Approximate shipping weight 1500 kg
Size 3990 L, 3660 W, 3075 H (mm)

Service requirements

Pneumatic Not applicable
Electrical service - EU 1L-PE-220V-50 Hz
Electrical service - US 115 VAC, 20 Amp











 S-300XT
